Specifications - Side-Auger Grain Carts
- Features:
- Specifications
| Model Number | 620 | |
|
*Bushel capacities were measured with #2 corn at 15% moisture (56 lb. test weight) Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice. |
||
| Capacity* | 650 bushels | |
| Auger Size | 14" | |
| Flighting Thickness | 5/16" | |
| Output Shaft Diameter | 1-3/4" | |
| Approximate Weight (lbs.) | 6,450 | |
| Approx. Loaded Tongue Weight (lbs.) | 3,590 | |
| Tractor H.P. Req. | 150+ | |
| Standard Tire | 20.8x38 | |
 |

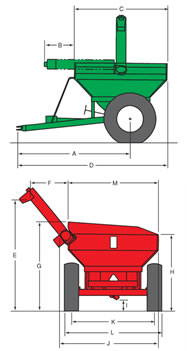

A. | 14'8" |
| B. | 3'1" | |
| C. | 14'1" | |
| D. | 21'1" | |
| E. | 13'9" | |
| F. | 5'4" | |
| G. | 11'2" | |
| H. | 10'5" | |
| I. | 1'4" | |
| J. | 12'2" | |
| K. | 10' | |
| L. | 11'9" | |
| M. | 11'11" | |
